Dock Bumpers (stationary)
A common cause of damage to facades and doors is to pass to low ramps. The manually adjustable Nani Dock Bumpers provides a convenient and low-cost solution to avoid crossing over the ramp due to high trucks. Loading to the extreme edge of the truck is no longer a problem.The Dock Bumper is locked in the rest position in the lowest position. The bumper upper edge is at the ramp level. If necessary, the lock is released and the bumper is automatically raised to the uppermost position. It is then 30cm above the ramp level. If the bumper is no longer needed in the top position, it can be lowered manually into the initial position. Locking is automatic.
Dock Bumpers are available in various fixed and movable versions. The following tables show the respective variants.
1. Rubber Buffer and Spring Steel Dock Bumper
- stationary Dock Bumper
- stationary Spring Steel Dock Bumper
- AG type bumper with mounting plate
- Spring Steel Dock Buffer Typ AS
2. Dock Bumper AGB (Buffer-Rubber-Movable)
The mobile start-up buffer is a special design that has been in successful use for many years. Normal bumpers are subject to extremely high wear during loading by the resilient movements of the truck. This means that these starting buffers must be renewed at short intervals. The vertically displaceable substructure minimizes the wear of the starting buffers. Normal bumpers are subject to extremely high wear during loading by the resilient movements of the truck. This means that these starting buffers must be renewed at short intervals. The vertically displaceable substructure minimizes the wear of the starting buffers.The mobile bumpers help with the resilient movements of the truck during the loading process and thus prevent rapid wear of the bumpers. The type of attachment depends on the local conditions, eg. B. weld, screw or dowel.
- AGB (Buffer-Rubber-Movable) Bumper
- docked to buffer – Automotive Logistics
Dock Bumper (height adjustable) – AMG, AHG, AMS, AHS
1. Dock Bumper AMG (Manual/Rubber)

The manually height-adjustable Rubber Buffer is positioned via a gas pressure spring. The height is adjusted by operating the foot.
- Dock Bumper (AMG) with console – lower position

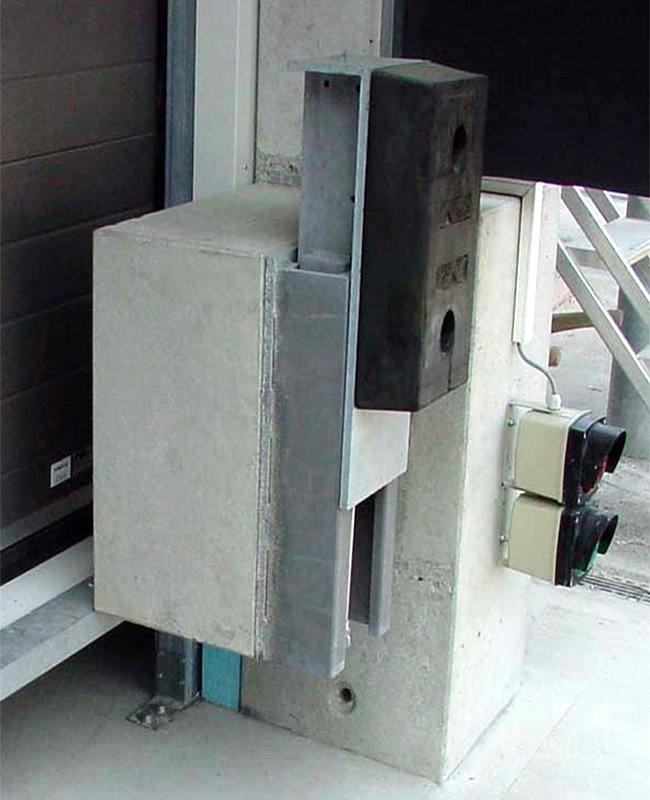

- Dock Bumper (AMG) without console – upper position
- Dock Bumper (AMG) in rest position – door closes in front of dockleveller
2. Dock Bumper AHG (Hydraulic/Rubber)

This Hydraulic Dock Bumper works in the same way as the AHS, with the difference that the Spring Steel Dock Bumper is replaced by a Rubber Buffer.
3. Dock Bumper AMS (Manual/Steel Spring) with gas pressure spring
- Spring Steel Dock Bumper (AMS) – Working and Loading Position

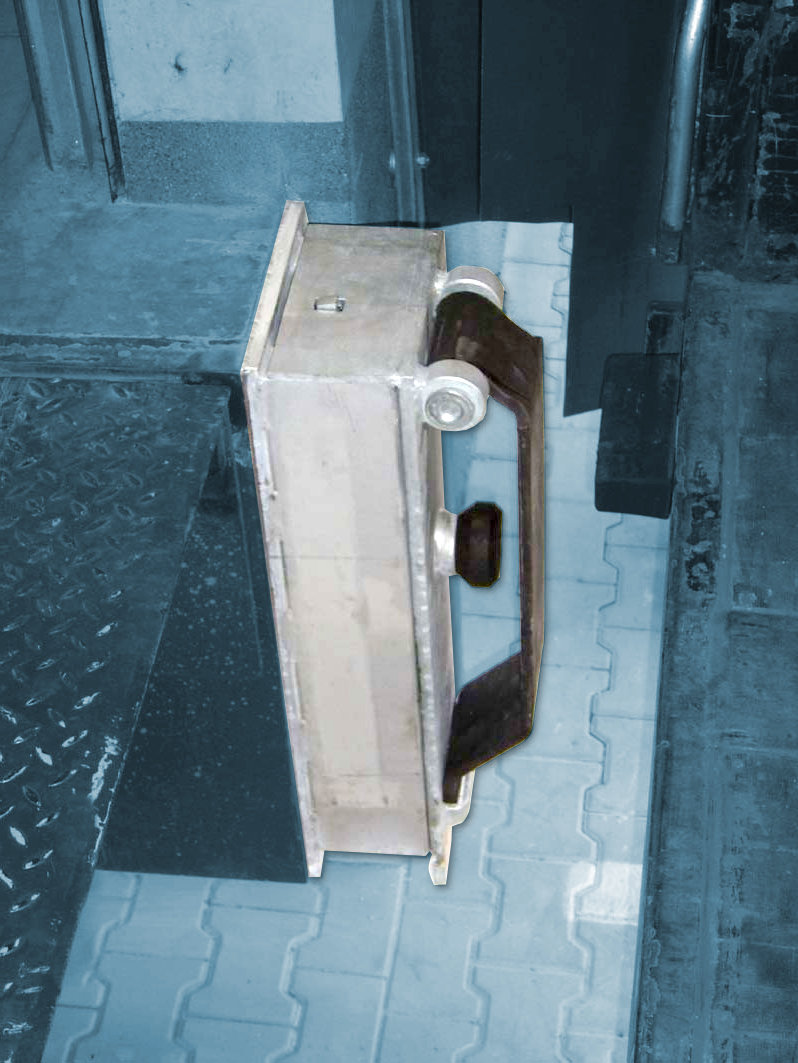

- Spring Steel Dock Bumper (AMS) – Rest Position and Zero Position
Example of a similar subconstruction for AMS- and AMG Dock Bumpers
- Spring Steel Dock Bumper (AMS) – in Zero Position
- Dock Bumper (AMG) – in Zero Position

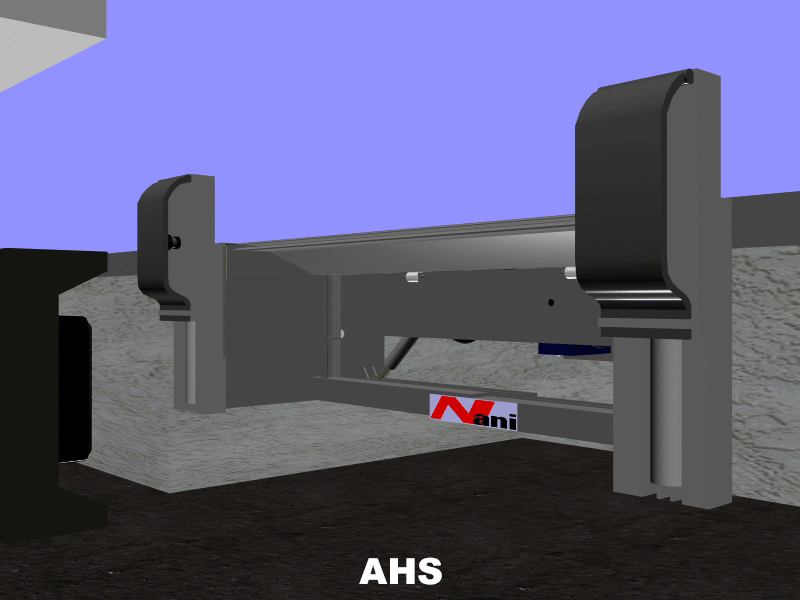

4. Dock Bumper AHS (Hydraulic/Steel Spring)

The hydraulically lowering Bumper provides a very comfortable solution to avoid crossing over the ramp due to high trucks. If the truck is docking (loading bed usually over the ramp level), it is not possible to open the truck doors. With the help of this Dock Bumper, the loading up to the extreme edge of the truck is no longer a problem. The operation is carried out half-automatic by coupling with the dockleveller control. The Spring Steel Dock Bumper initially dodges to the rear and thus lowers contact-free to the truck. The truck doors are no longer blocked and can be opened.
- Delivery of a Spring Steel Dock Bumper
- Delivery of a Rubber Plate

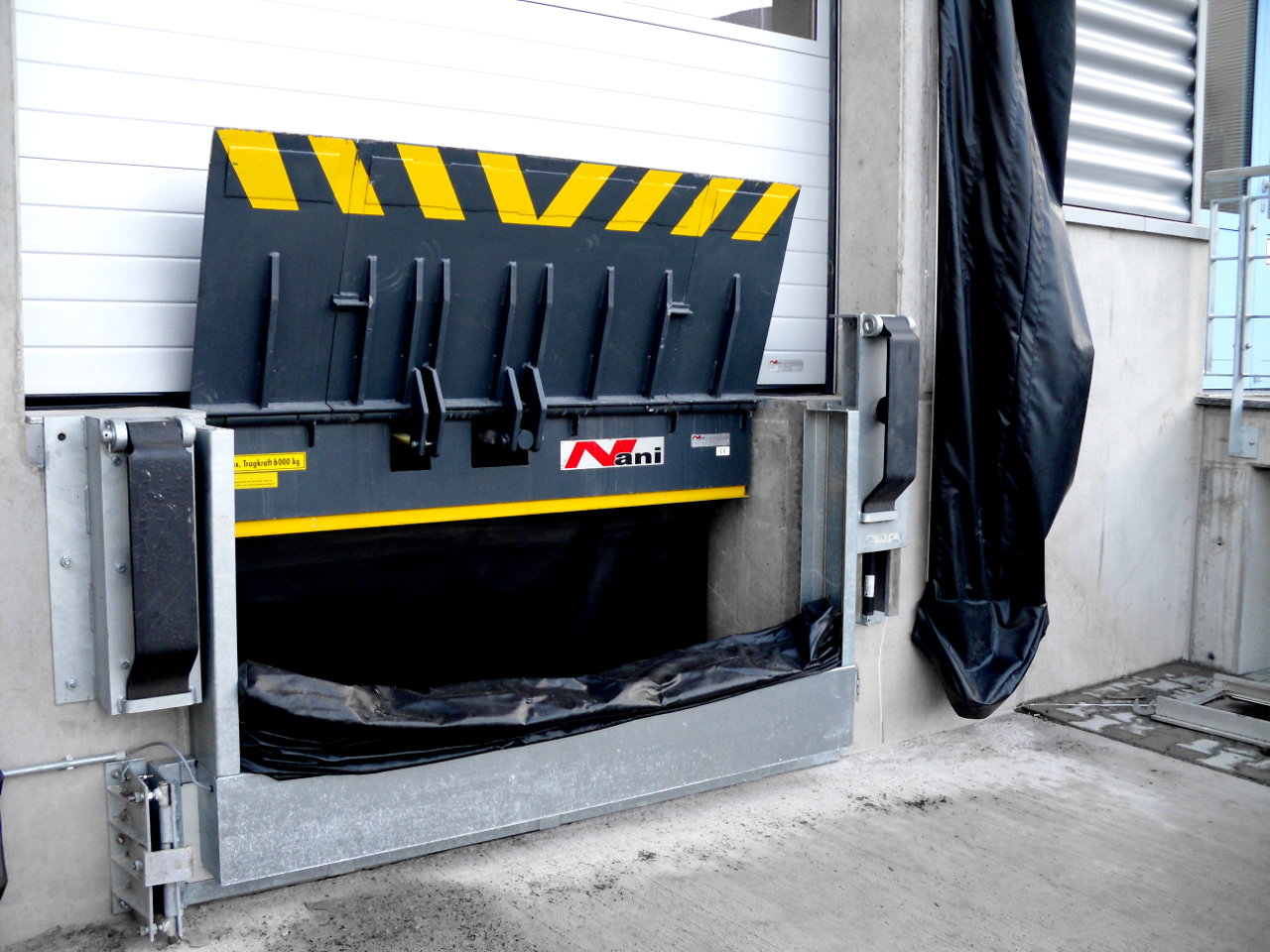

- Dock Lift with four-sided inflatable dockshelter and Spring Steel Dock Bumper
Replacement of Dock Bumper – Before/After
- Before – intended to replaced Rubber Buffer
- After – replaced Rubber Buffer
- Before – Loading Dock with collision damages
- After – repaired and modernized Loading Dock
Different bumper variants and constructions
- stationary Rubber Buffer with attachment to precamber
- stationary Spring Steel Dock Bumper with console
- Rubber Buffer
- horizontally installed Rubber Buffers
- slim Impact Driving Bumper Protection

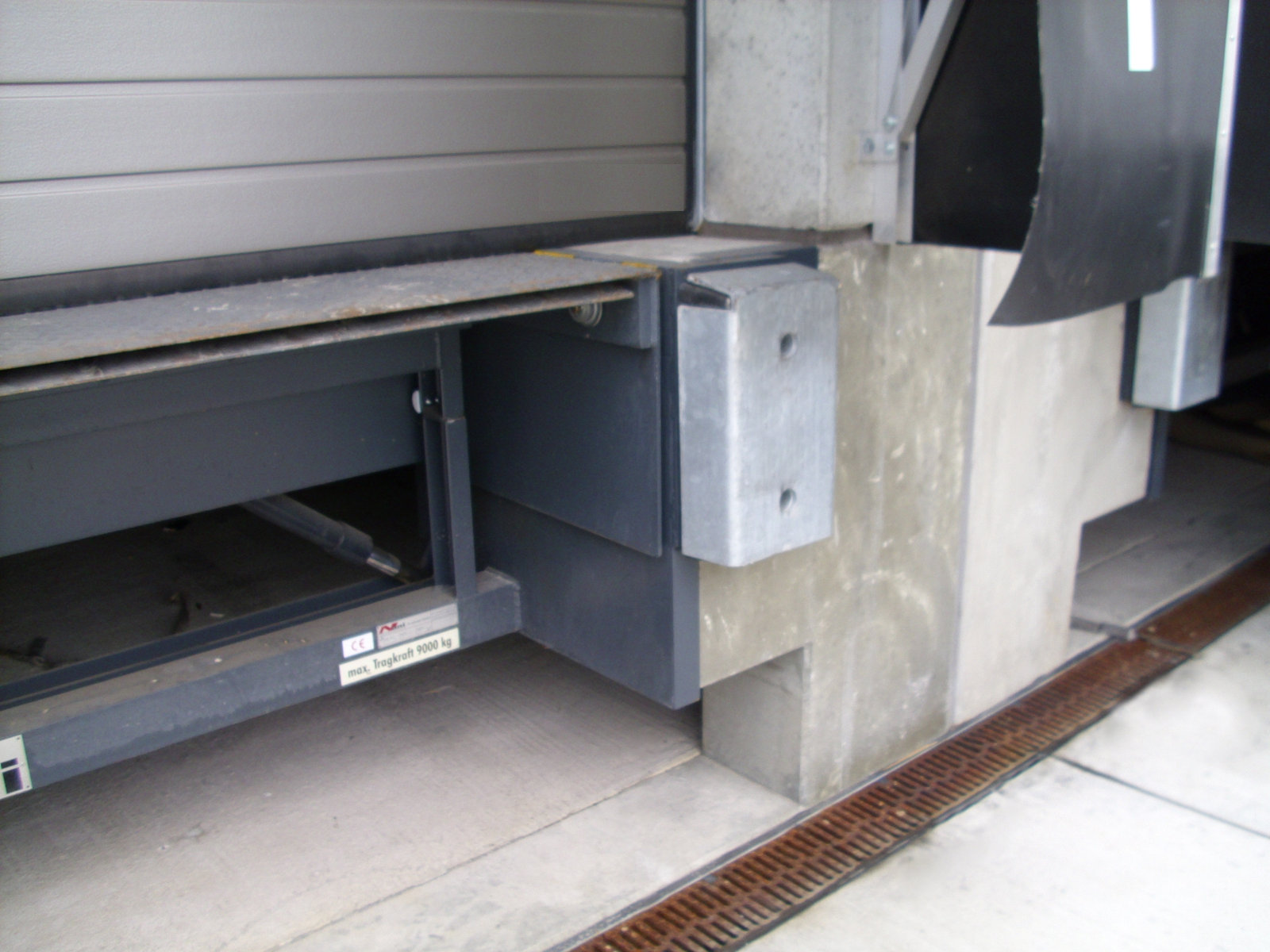

- Rubber Buffer in Steel Sheating (AGS)
- stationary rigid Spring Steel Dock Bumper
- P-TAD with Spring Steel Dock Bumper
Defective Dock Bumpers
- slim worn Rubber Buffer
- Defective Diamond Plate of a Dock Bumper
- tore off Rubber Buffer
Spring Steel Dock Bumper – Deflection

REFERENCES
VIDEOS
Content:
Nani Spring Steel Dock Bumper (AMS), height adjustable
Protection of the ramp doors in front of trucks with loading areas higher than the ramp itself.
