Column Lift Tables
Column lifting tables are used wherever1. there is no space for digging up the necessary pit which conventional scissor lift tables need, or
2. if large lifting heights have to be overcome, but the platform dimensions are comparatively too small.
As a result, such solutions are regularly tailored to customer requirements. The column lifting table is not lifted by means of shears, but by means of hydraulic cylinders located in the “pillars” or another frame. The platform is regularly designed in such a way that you have a very low drive-up height. For this reason they are often used as freight elevators. For these lifting tables special solutions for ATEX zones, for chemical applications, for the heavy industry, etc. are no problem.
The advantages of a Column Lift Tablee
1. easy assembly without extensive preparatory work2. stable, reliable and low-maintenance
3. easy operation for trained users
4. low »Total Cost of Ownership« (TCO) / total operating costs
Column Lift Tables in draft
- Garbage elevator with canopy
- Concept illustration of canopy closes manhole
- SHT05 (500 kg) for hospital
- SHT20 (Column Lift Table 20 kN)
- Column Lift Table on steel ramp
- SHT with barrier system and stairs
- SHT20 in rest position
- Column Lift Table rendering position below
Column Lift Tables in the implementation
- SHT20 for electronics retailers
- Column Lift Table in Munich
- SHT05 indoor
- Goods elevator in NRW
- Column Lift Table SHT05
- Column Lift Table position below
- SHT20 position below inside
- SHT20 position below outside

Column lifting table in Beverage logistics
For the restaurant business of a Bavarian brewery group in downtown Würzburg we have mounted a column lift table in an existing shaft. Delivered beer barrels, beverage barrels, cider barrels and fermentation barrels are transported from the outside into the basement area of the restaurant via this lifting table.- Column Lift Table in brewery
- upper position
- lower position
Other features:
- Hydraulic unit with cover and oil pan outside the pit
- Control column with additional control unit ( buy in our Shop) via key switch and sensors to query the flap position
- Protection of all shear edges via contact strips and light grids
- Edge protection bracket on site
Technical Specifications | |
---|---|
Platform width, light dimension | 600 mm |
Platform length, light dimension | 980 mm |
Pit widtH | 750 mm |
Pit length | 1200 mm |
Effective lift / lifting height (Stroke) | 1850 mm |
Overall height / pit depth for the base frame of the lift | 150 mm |
Capacity | 500 kg |
Steel construction | completely hot-dip galvanized |
Platform surface | non-slip checker plate, hot-dip galvanized |
Column Lift Table as Passenger and Wheel Chair Lifts
- Column Lift Table in chain carousel
- upper position

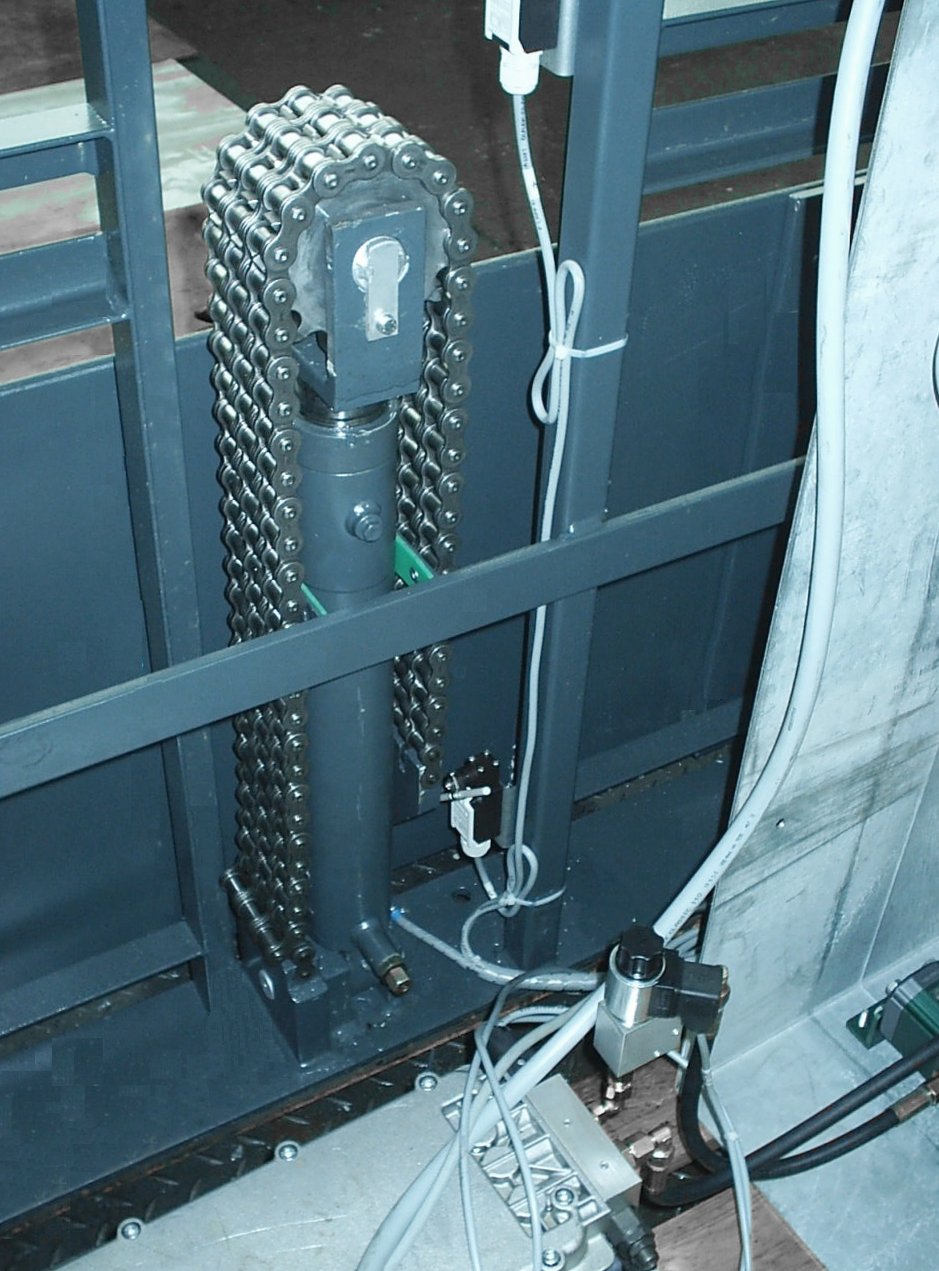

- Detail of Column Lift Table
- Column Lift Table chain carousel on site
2in1 Column Lift Table with Dockleveller VBK

Solution for event houses (art gallery)
